Description

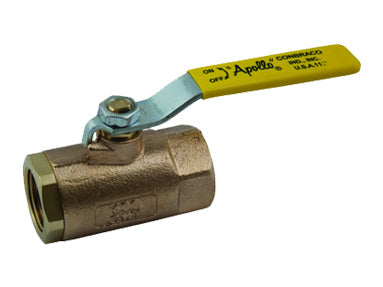

The Apollo 77 Series is a full port, two-piece, bronze, ball valve with mounting pad.
Size/Partno | ETA |
1/4" /77-101-01 | 6 Working Weeks |
3/8"/77-102-01 | 4 Working Weeks |
1/2"/77-103-01 | 5 - 7 Working Days |
3/4" /77-104-01 | 5 - 7 Working Days |
1" /77-105-01 | 5 - 7 Working Days |
1-1/4" /77-106-01 | 4 Working Weeks |
1-1/2" /77-107-01 | 5 - 7 Working Days |
2" /77-108-01 | 5 - 7 Working Days |
2-1/2" /77-109-01 | 4 Working Weeks |
- Adjustable Packing
- Blowout-Proof Stem Design
- RPTFE Seats and Stuffing Box Ring
- Hardened Ball for Wear Resistance
- 100% Factory Tested
- Mounting Pad for Easy Actuator Mounting
Standard Material List:
- Lever and Grip: Steel, Zinc Plated w/ Vinyl
- Stem Packing: MPTFE
- Stem Bearing: RPTFE
- Ball: B16, Chrome Plated or B283, C37700
- Seat: (2) RPTFE
- Retainer: B16 or B283, C37700 (3/4" to 1"), B584-C84400 (1 -1/4" to 2-1/2")
- Gland Nut: B16
- Stem: B16
- Lever Nut: Steel, Zinc Plated
- Body Seal (1-1/4" TO 2-1/2"): PTFE
- Body: B584-C84400
Performance Rating:
- Maximum Pressures: CWP: 600 psi | SWP: 150 psi
- Maximum Temperature: 500°F
- Vacuum Service to 29 in. Hg
